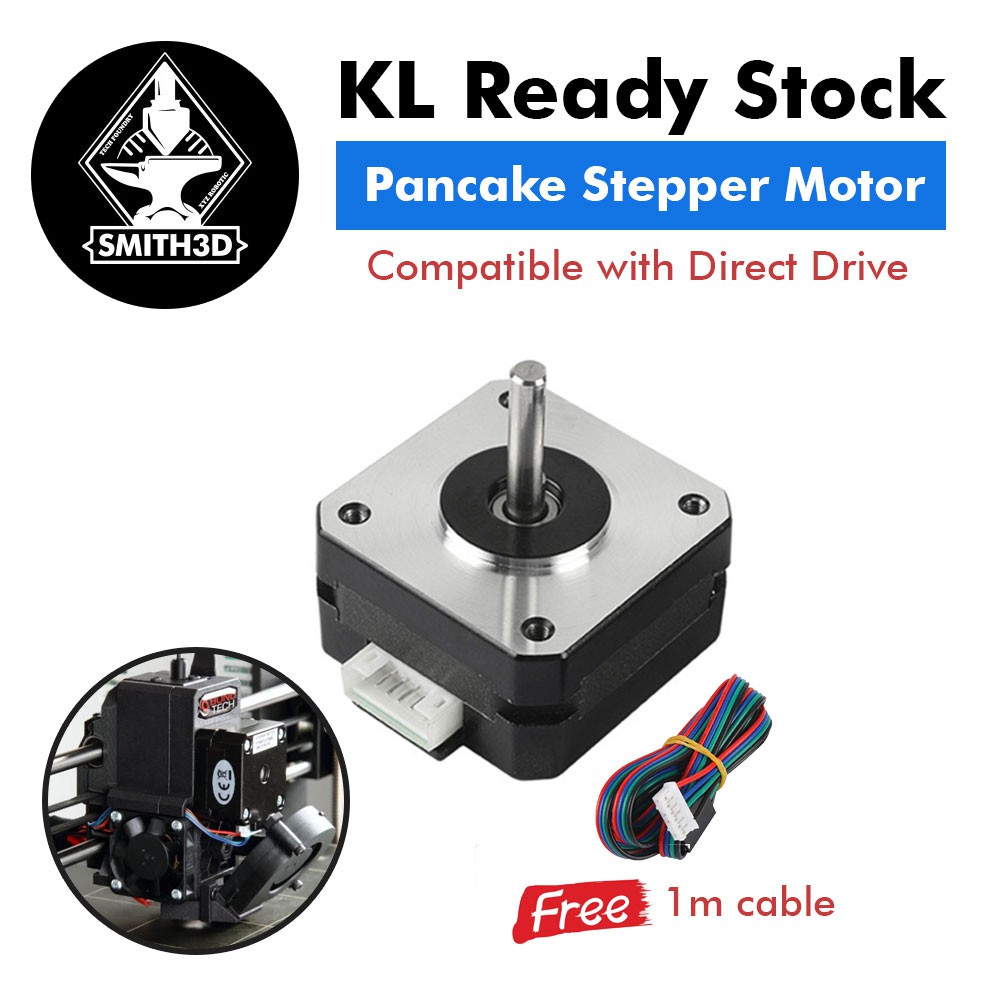

Pancake Stepper Motor Nema17 Lightweight With 1M Cable 23Mm 1.8 Degree For 3D Printer Bmg Extruder Upgrade

Nema17 Lightweight Pancake Stepper Motor

Name: Nema17 Lightweight Pancake Stepper Motor | Smith3D Malaysia
SKU: PANCAKE-MOTOR-NEMA17
Price: 36.50 MYR
Availability: InStock
Rating: 5.00 (23 reviews)

Rated 5.00 out of 5 based on 23 customer ratings

(23 customer reviews)

RM36.50

13 in stock

SKU: PANCAKE-MOTOR-NEMA17 Categories: Motion Controllers, Parts And Accessories, Stepper Motor

Note: Only use it on BMG or Titan Extruder. It’s not direct swap for the bowden setup and it may not have enough torque to spin the standard extruder or dual gear extruder.

This is Lightweight stepper motor with 1.8 deg. Each phase draws 1.0A ,allowing for a holding torque of 130mN.cm
100cm wire, one connect electrical machine, on the other end has variety optional ports.
It’s excellent for the RepRap Prusa, Mendel 90, Rostock and，similar 3D printers, as well as CNC and robotics applications.
The motor is supplied with a 1 metre long power cable with a 4-pin Harwin female connector already fitted – ready to plug and print!

Specification:
Size: 42x42x23mm
Step Angle: 1.8 degree
Rated Current/phase: 1.0A
Holding Torque: 130mN.m
Braking Torque: 20mN.m
Rotor Inertia: 30.8g.cm²
Weight: 132g

Package List:
-Pancake Stepper Motor with 1 meter cable

Weight	0.5 kg
Dimensions	4 × 4 × 8 cm

23 reviews for Nema17 Lightweight Pancake Stepper Motor

Rated 5 out of 5
watterec – March 9, 2022
Berfungsi dengan baik.
Rated 5 out of 5
sahifulhelmyrozali – July 12, 2021
Seller sangat terbaik!!!!
Rated 5 out of 5
draxecu – May 11, 2021
the motor have no branding… hope it works well.
Rated 5 out of 5
hybridv – May 3, 2021
Well packed and received in good condition.
