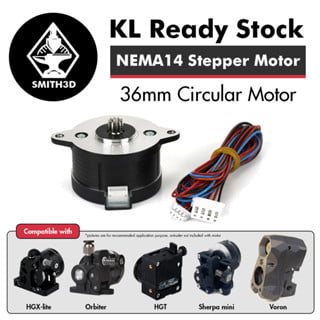

Nema 14 36mm 1.8° Round Pancake Alternative Stepper Motor for LDO Orbiter / Sherpa Mini / HGX Lite / HGT / Voron

🔥 All are ready stock in Sungai besi office & ship within 24 hours* (Except for non working day, but do call us to check)

🔥 Select Others (West Malaysia) as shipment if you’d like to opt for self-pickup/by delivery services (Lalamove, Grab, etc ). Contact us after placed order.etc )

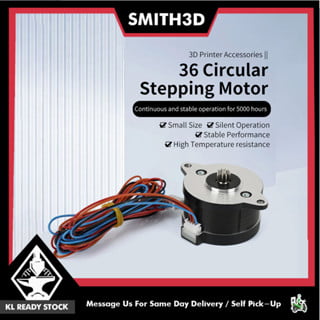

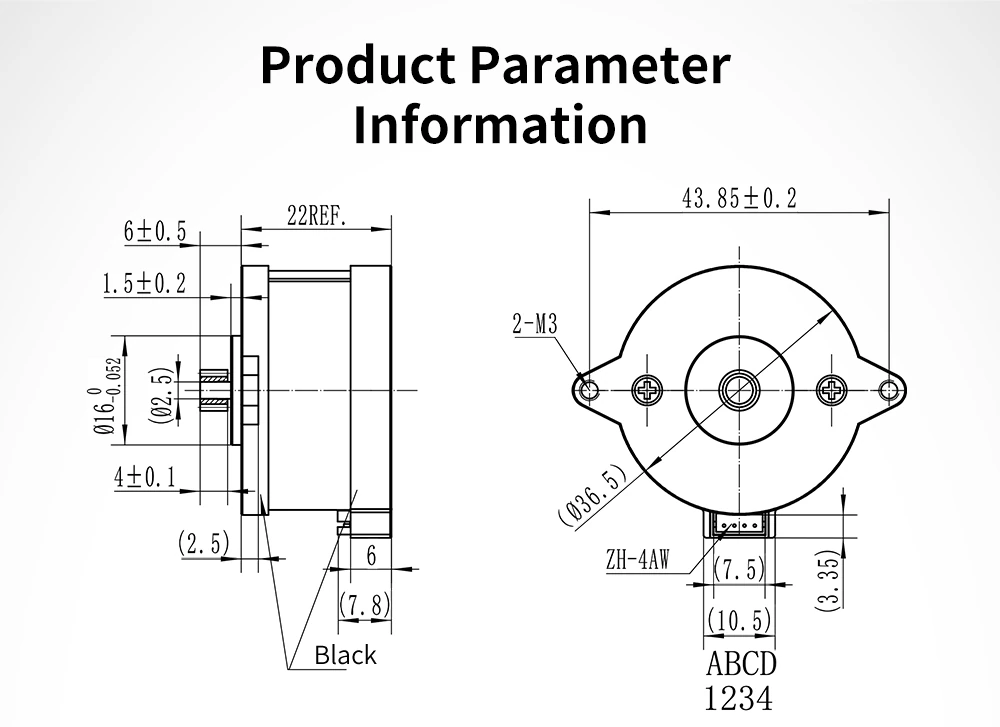

Nema 14 36mm 1.8° Round Pancake

(Detachable wire for easier installation & replacement)

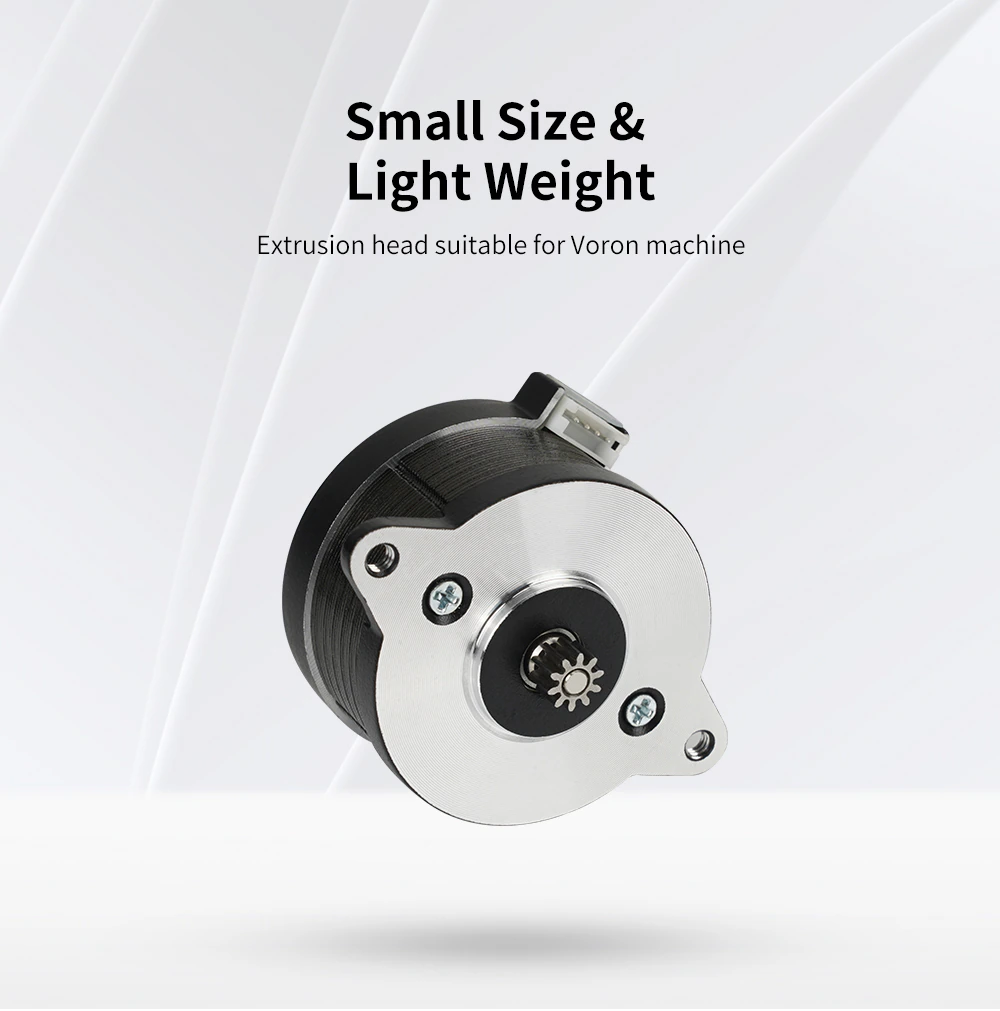

The round stepper motor compatible with the Extruder of Voron 3D Printer

Alternative Stepper Motor for LDO Orbiter / Sherpa Mini / HGX Lite / HGT / Voron

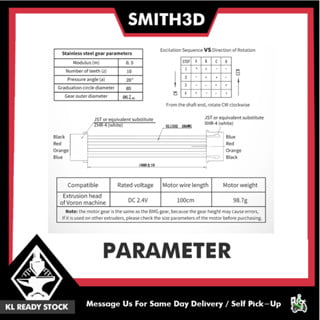

Specification:

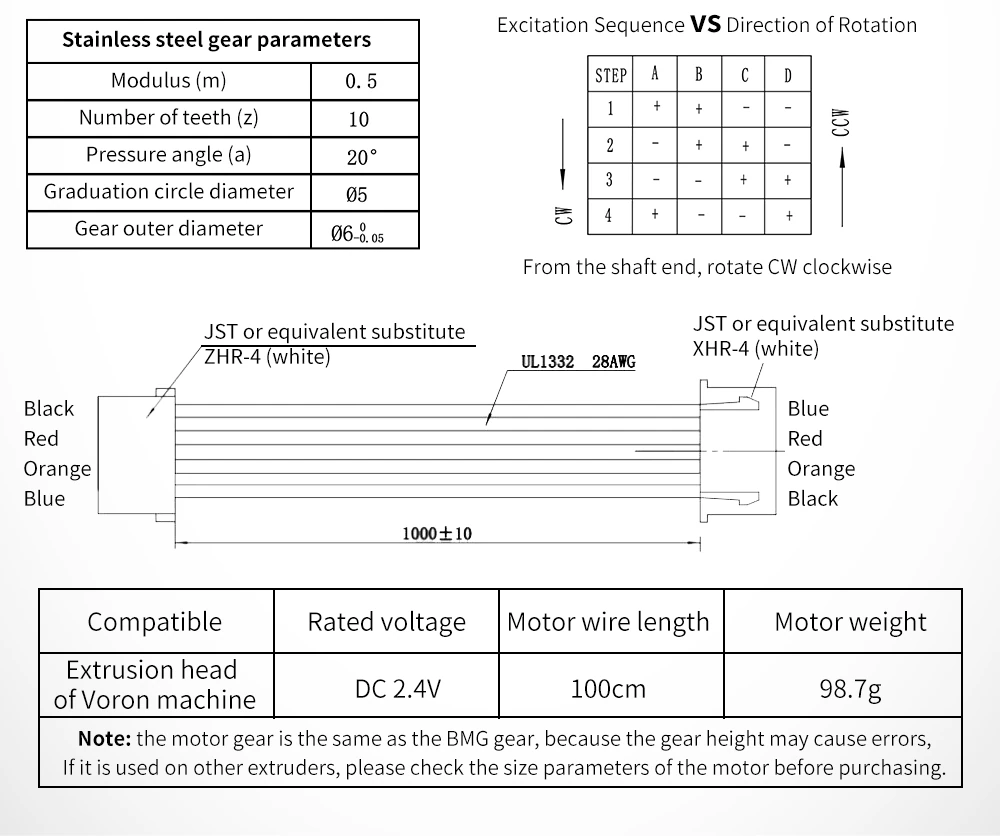

Material: Copper gear

Module m: 0.5

Pressure angle a: 20°

Number of teeth Z: 10

Gear outer diameter Do: 06-0.1

Number of phases: 2

Step angle: 18″

Rated voltage: DC 2.4V

Rated current: DC 0.5A

Keep rotating torch: ≥120mN.m

Phase resistance: 13±10% ohm(20C)

Phase inductance: 10 ± 20% Tsui (1KHz)

Turning (look with the object): A-AB-B-C

Moment of inertia: 15 g.cm

Packages:

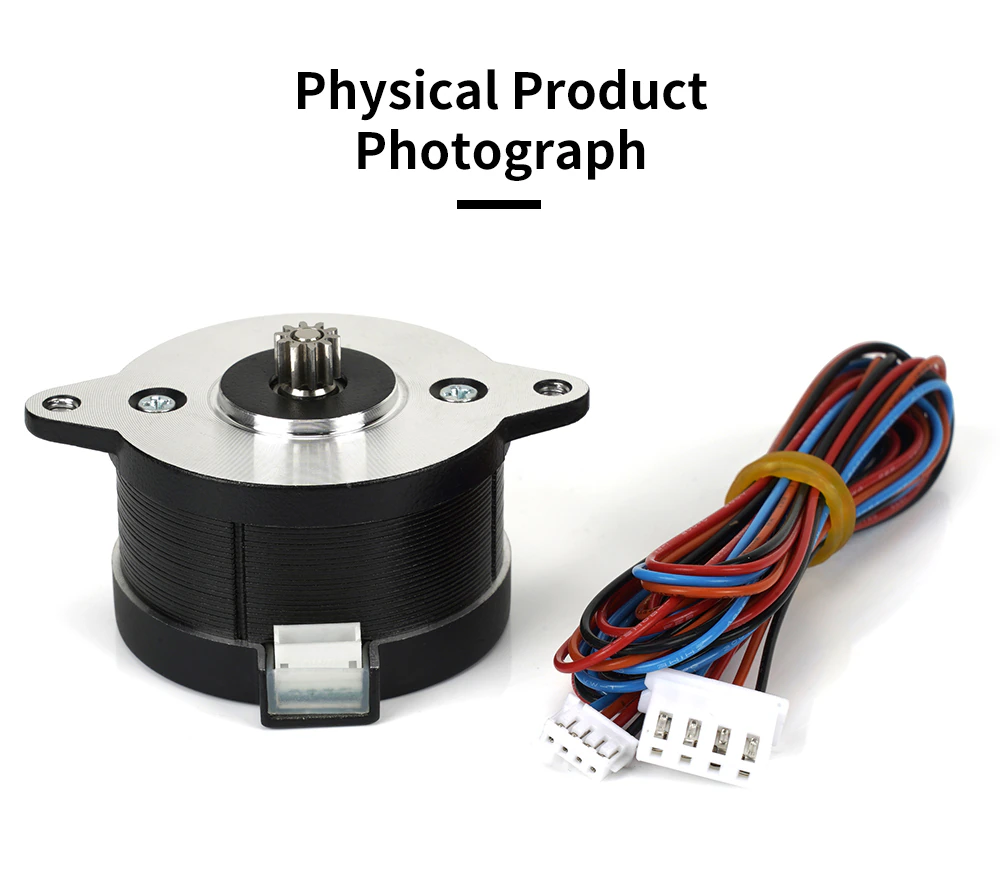

1 x 36mm Stepper Motor

1 x Stepper motor Cable
