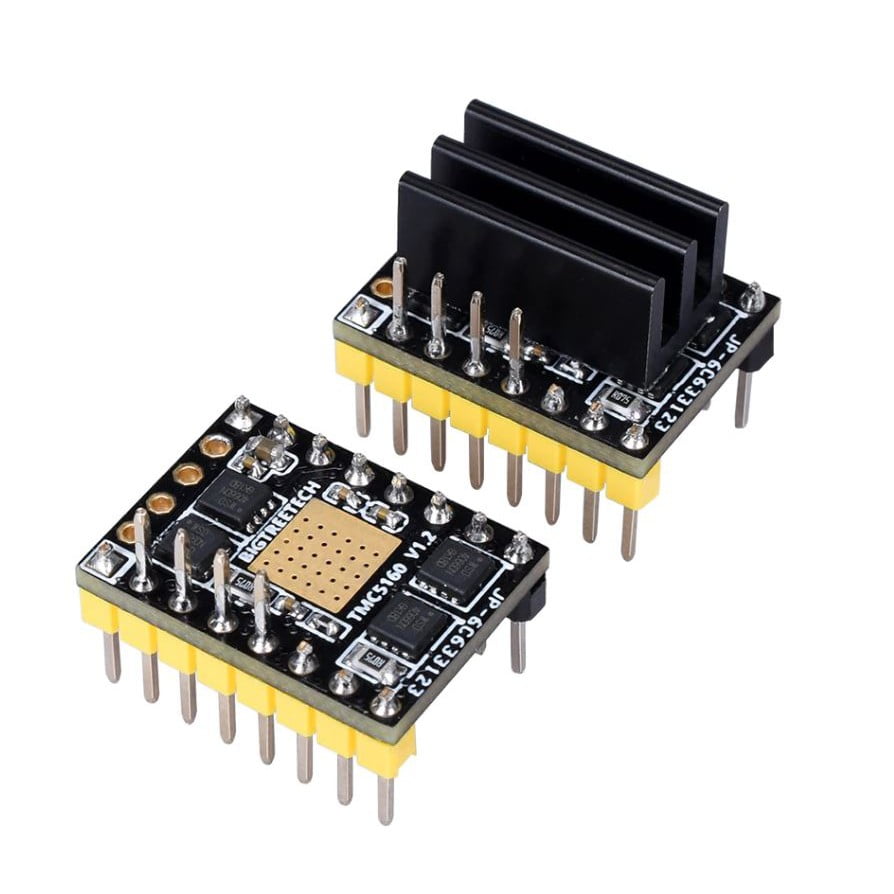

TMC5160 / TMC5160 Pro BIGTREETECH SPI Stepper Motor Driver – 6-Layer Board for SKR V1.3 / V1.4 Mini E3 KL Ready Stock

All are ready stock in Sungai besi office & ship within 24 hours* (Except for non working day, but do call us to check)

Select Others (West Malaysia) as shipment if you’d like to opt for self-pickup/by delivery services (Lalamove, Grab, etc ). Contact us after placed order.etc ).

For guide on TMC5160 + SKR v1.3, please watch:

Brand Name: BIQU
Type: Driver

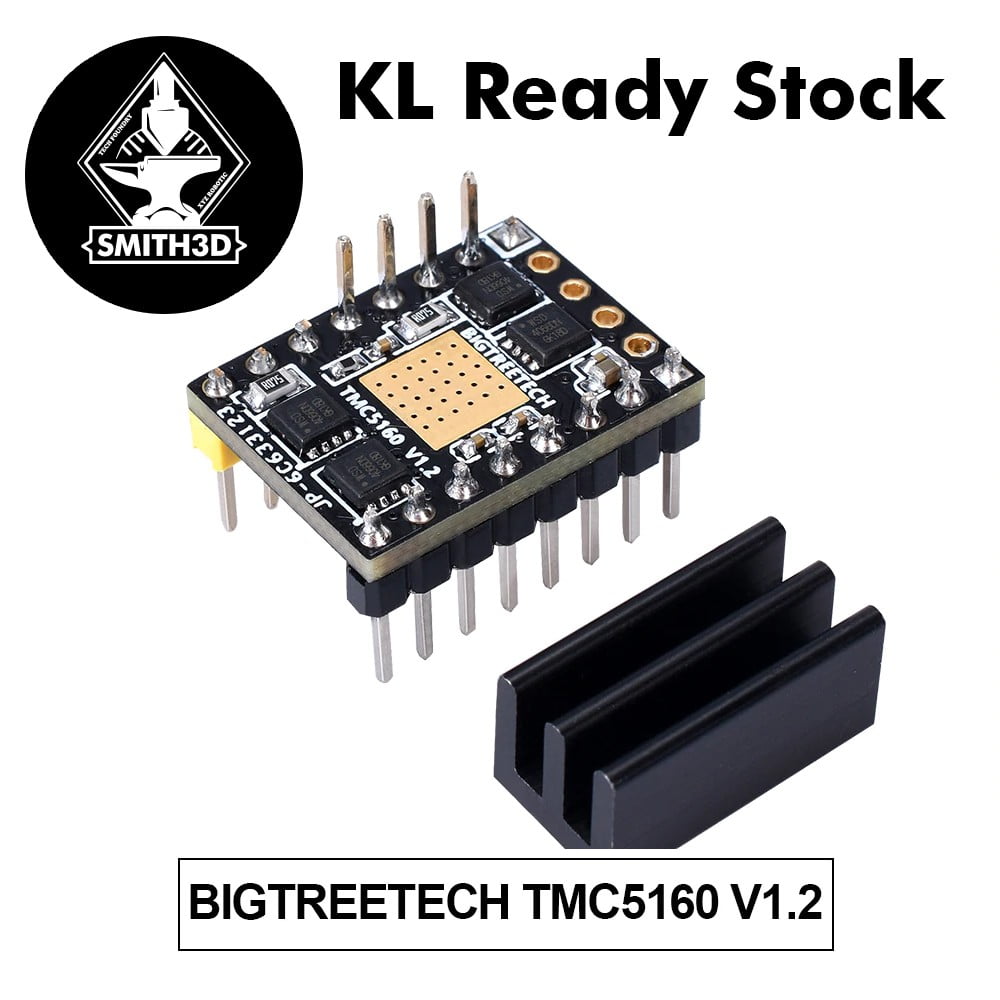

Model Number: BIGTREETECH TMC5160 V1.2
Product Name: TMC5160 V1.2 Stepper Motor Driver
Working mode: SPI Mode
Support Firmware: Marlin2.0
Maximum subdivision: 256

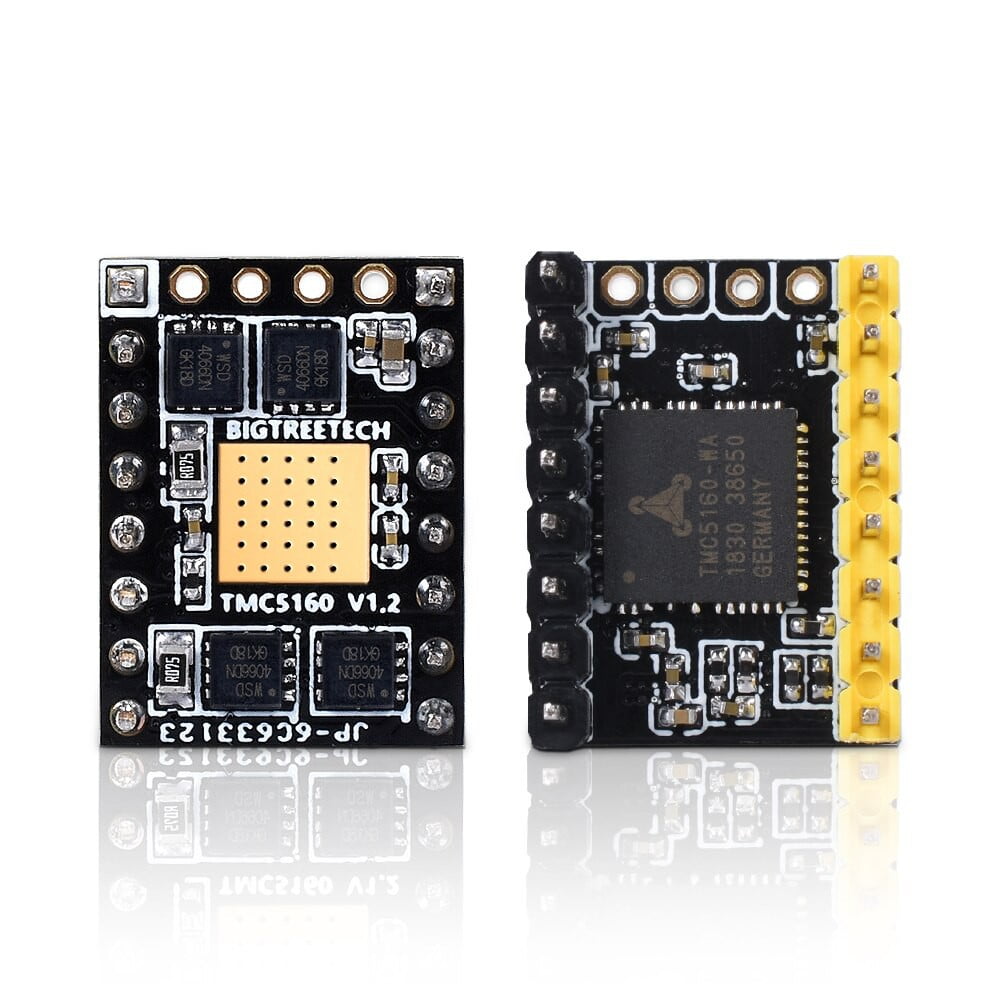

Driver chip: tmc5160-wa
Power supply voltage (VM): 8V– -35V
Maximum current: 4.4AWith: 4PCS MOSFET MOS TubeMotor
Type: Stepper Motor
Compatible With: 3D Printer Board
Suitable For: SKR V1.3/SKR1.4/PRO/SKR E3 DIP/MKS GEN L/V1.4
Usage: 3D Printer PartsQuality: Guarantee

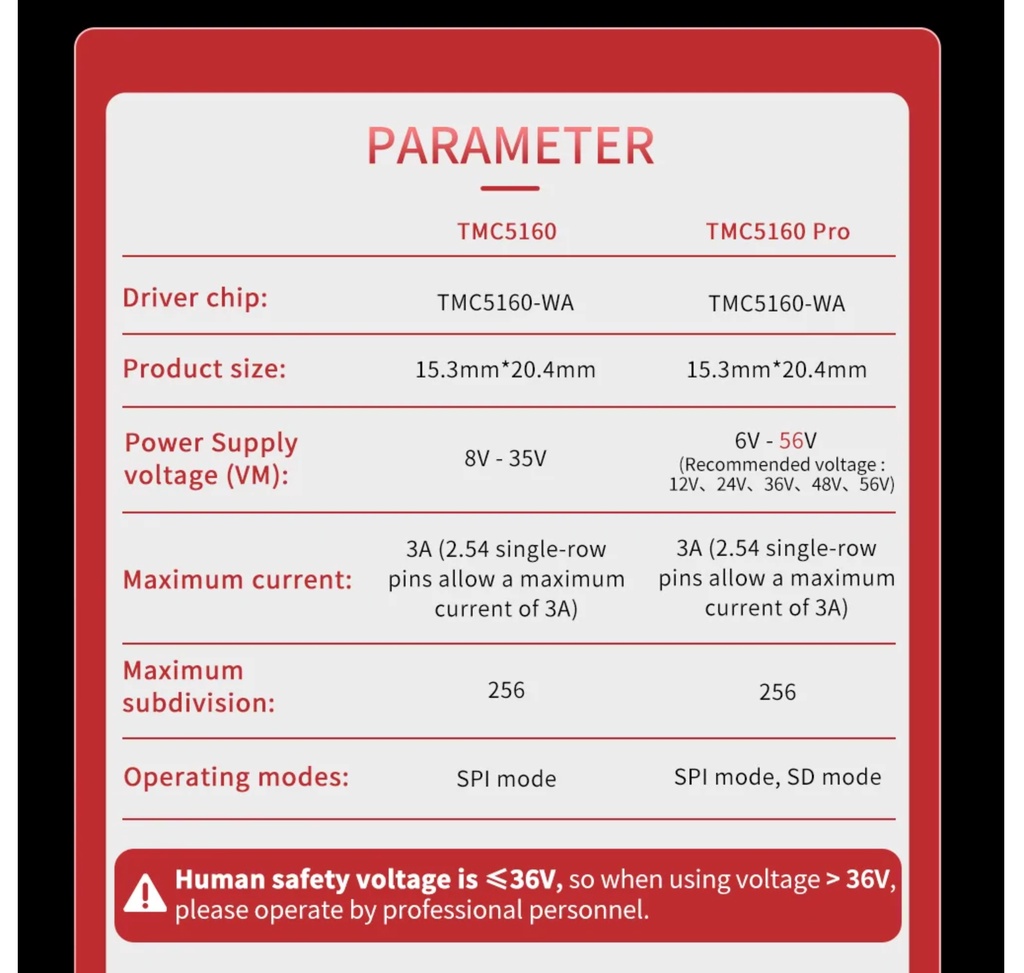

BTT TMC5160 Pro V1.1

Data:https://github.com/bigtreetech/BIGTREETECH-Stepper-Motor-Driver/tree/master/TMC5160%20Pro%20V1.1

Driver Chip: TMC5160-WA
Product Size: 15.3×20.4mm
Power Supply Voltage(VM): 8-60V
Maximum Current: 3A (2.54 single-row pins allow a maximum current of 3A)
Maximum Subdivision: 256
Operating Modes: SPI mode, SD mode

External power MOS, larger current, less heat generation
Avoid motor jittering, no pulse loss
Powerful driving function, driving 57 stepper motor and other motors
Ultra-quiet, low noise below 10dB
