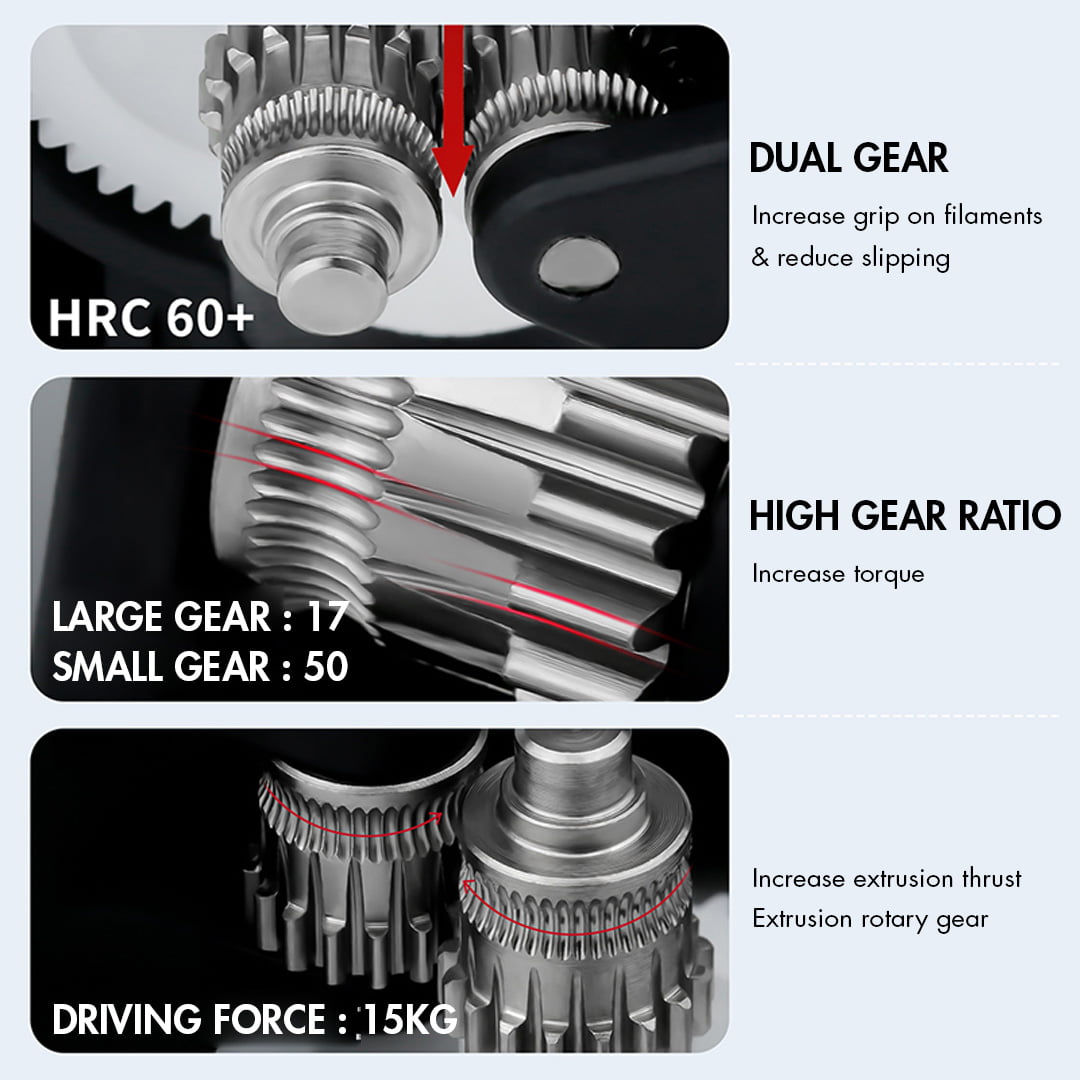

With this extruder, users can choose more consumables when using 3D printers. At the same time, the double gear structure has a larger transmission ratio and improves the torque to improve the thrust of the extruder.

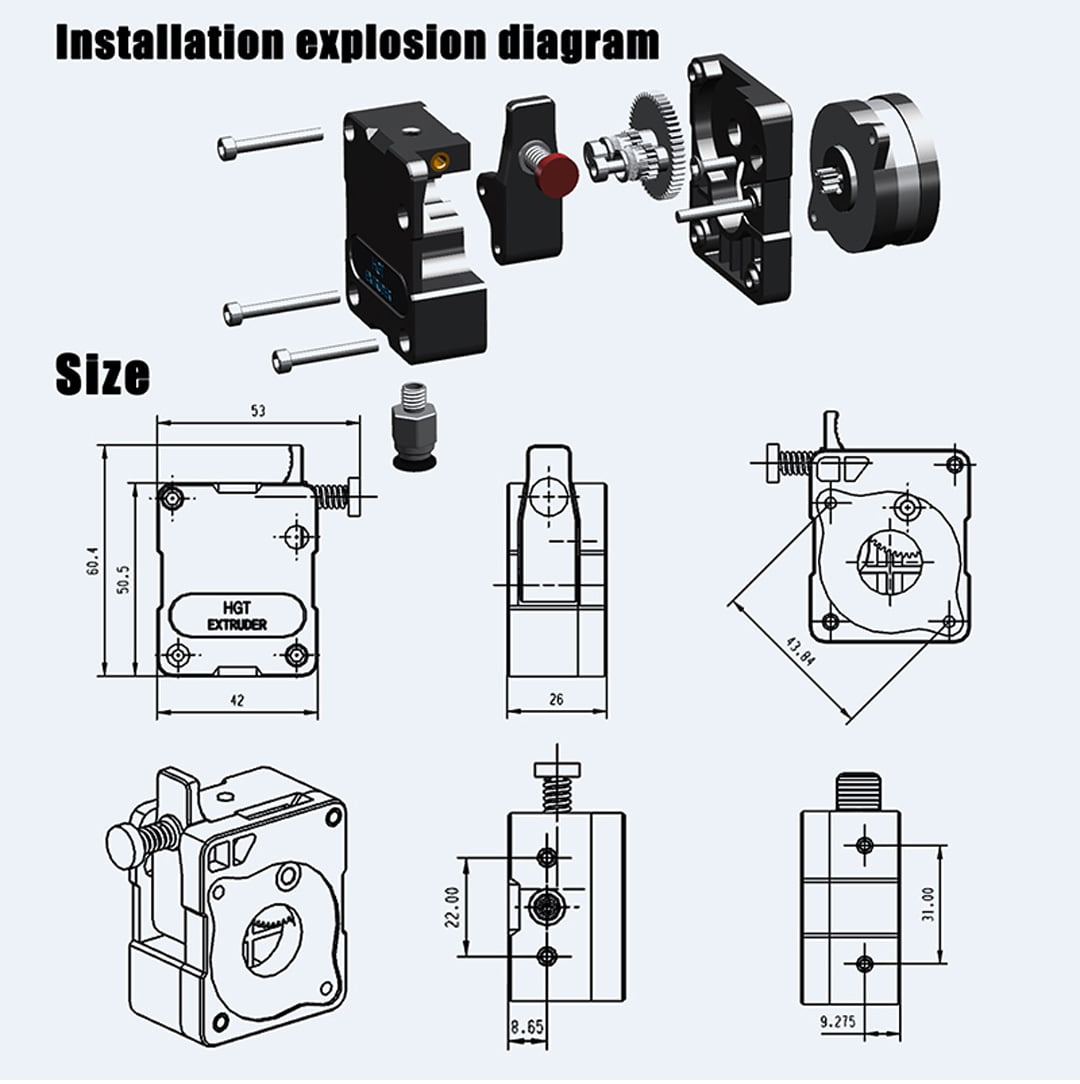

Other models can be designed by themselves according to the size and mounting hole, and can print PLA, ABS, PETG, TPU, PP, PC, nylon, PEEK, PEI and other consumables.

The integrated reduction gear eliminates the jacking wire fixation to prevent slipping. The gear is small in size and light in weight.

Features

• Structure of the product is made of Nylon + Fiber material, precision mold injection molding, small volume and light weight

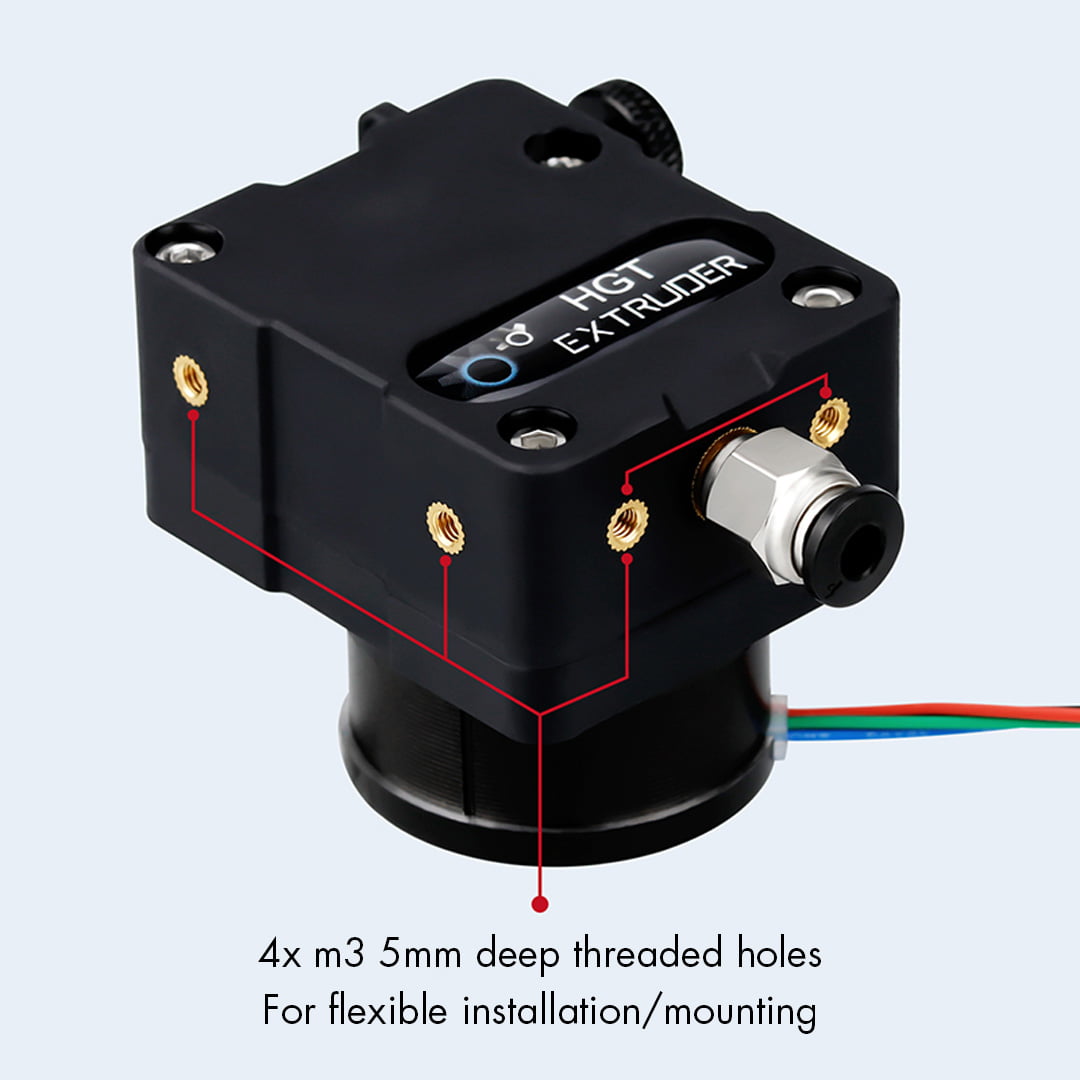

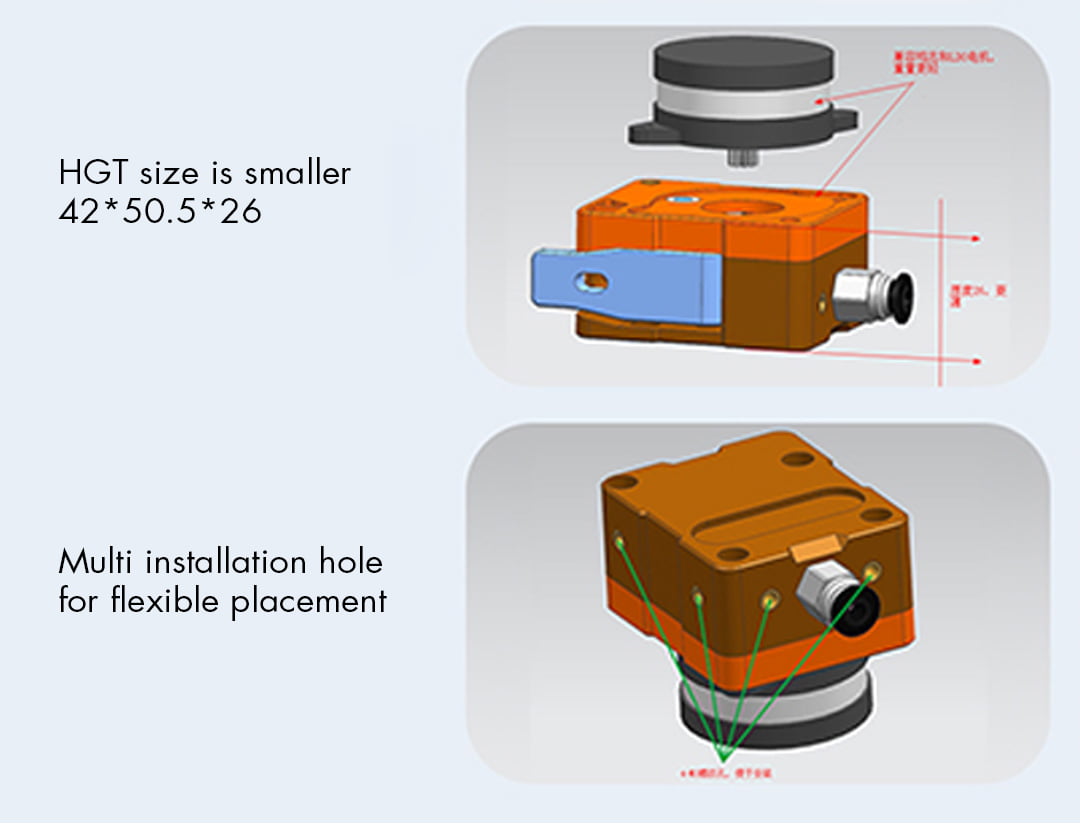

• Multi-hole installation, convenient for flexible installation and setting.

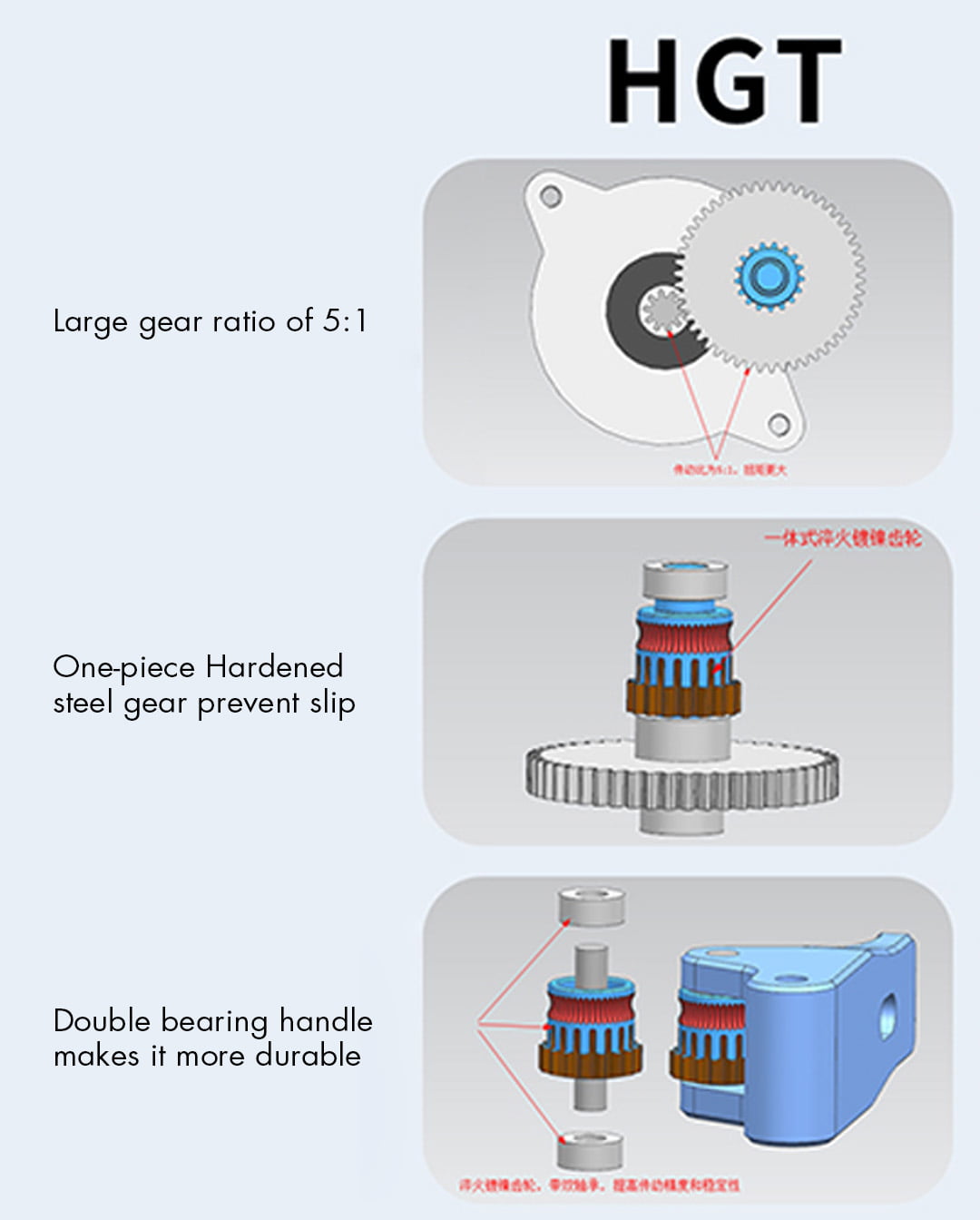

• The HGT extruder gear is an integral quenched nickel-plated gear, a new integral reduction gear, which can eliminate the screw fixation of the machine meter, eliminate the phenomenon of slipping, and prevent the phenomenon of sliding and falling off in the printing process.

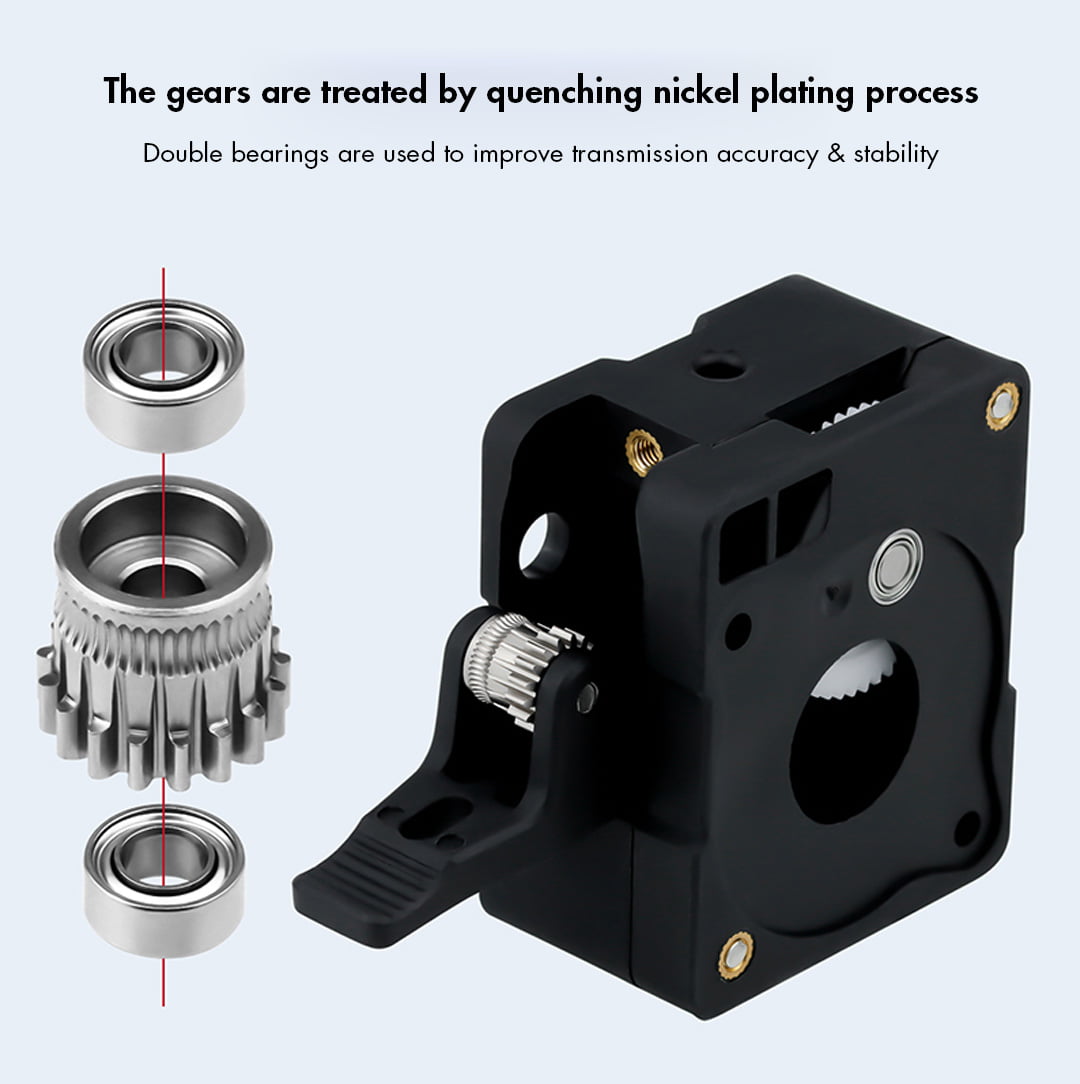

• The reduction gear and handle gear are designed with double bearings. The two gears are post-treated, quench and electroplated to make them more wear-resistant and improve the printing quality. The positioning pins are made of high hardness material, which slows down the wear in the printing work and prolongs the service life.
• Used with Model 36 Stepper Motor

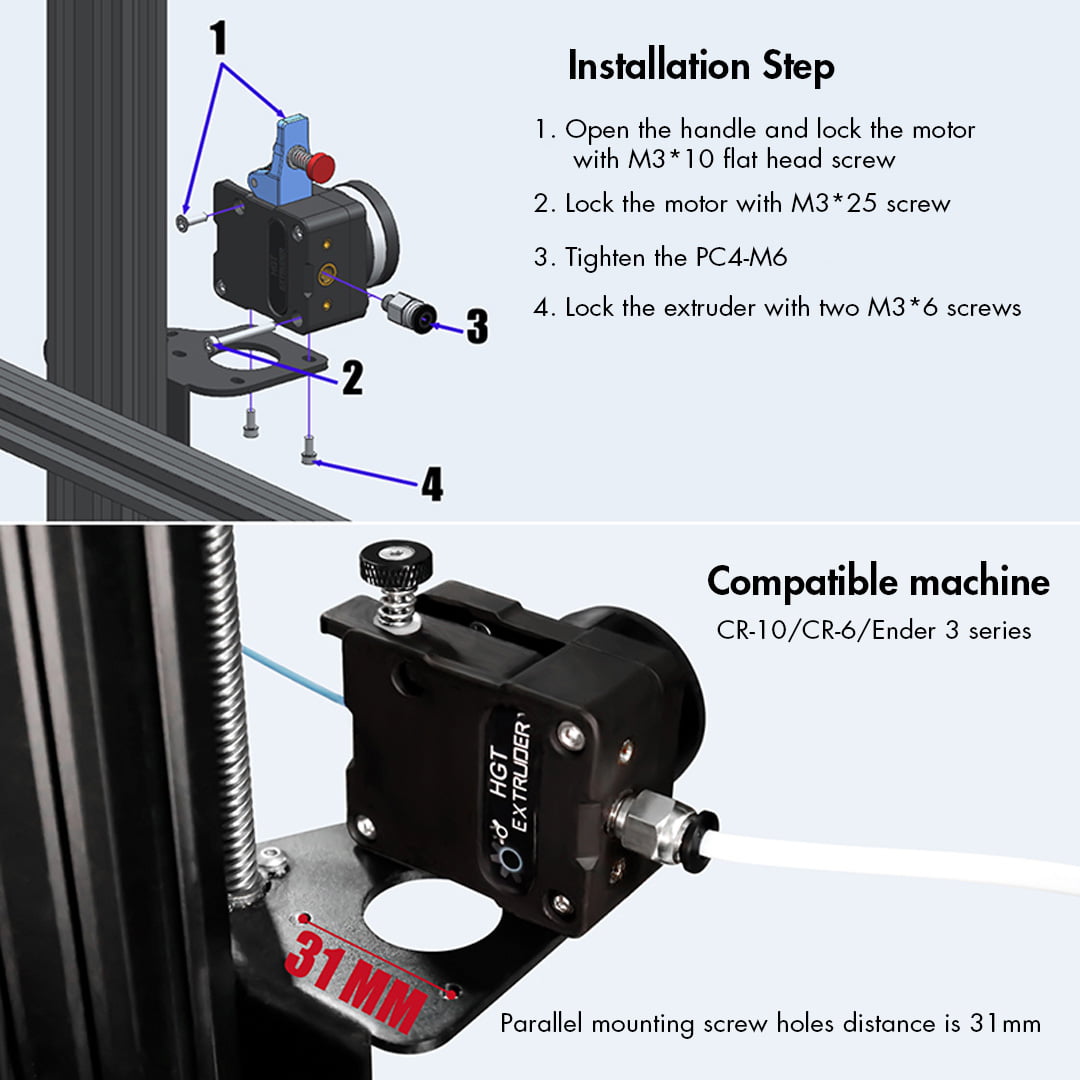

Compatibility

• CR-10 / CR-10S
• Ender-3 /Ender-3-V2
• CR6-SE
