Anycubic Photon M3 Premium

🚀 8K High Precision Resolution

Designed with a 10-inch monochrome LCD screen with a 7680×4320 resolution and an XY-resolution of 28.5μm, respectively 216% and 40% higher than the Anycubic Mono 4K. The models’ sharp corners and delicate edges are perfectly printed, revealing the beauty of sharper details.

Details Beyond 8K

The patented self-innovated LightTurbo 2.0 light source solution provides the high light uniformity of the COB light source system while eliminating stray light, creating a delicate and smooth model surface.

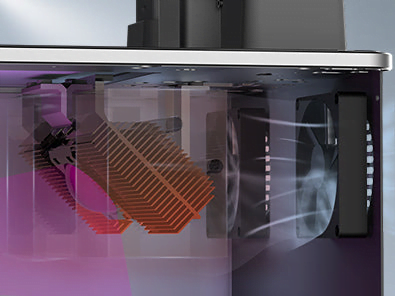

Upgraded Cooling System

The combination of software and hardware automatically detects the temperature. It adjusts the speed of the cooling fan according to ensure that the printing environment is kept within 65℃, effectively improving the light source’s lifespan.

Large Volume Brings Unlimited Creativity

The printing size of Anycubic Photon M3 Premium is 250*220*120 mm (HWD), and the maximum printing volume reaches 6.7L, which provides more creative space for creators while ensuring printing accuracy.

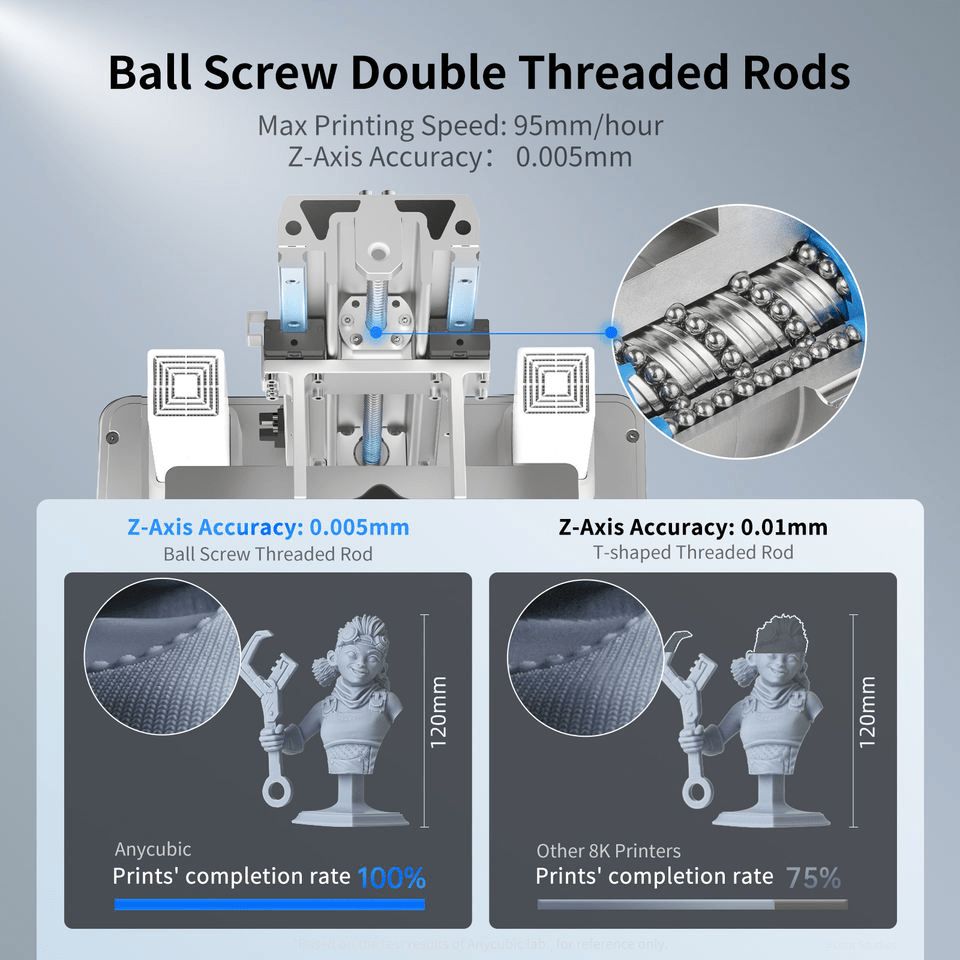

Double Threaded Rods

Compared to the T-shaped threaded rod, the ball screw double-threaded rods provide 0.005mm of improved structural accuracy, which is only half of the ordinary T-shaped rod printer, significantly reducing the layer line effects. The double-threaded rods minimize the lifting resistance of the platform while printing by adopting the rolling friction principle, making the printing speed even faster

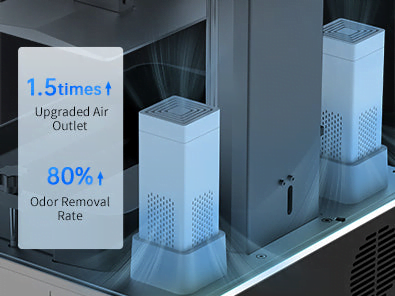

Efficient Air Purification

The double air-purifiers system is embedded with high-density activated carbon inside the air purifiers. The symmetrical double air intake design enlarges the air inlet and outlet area by 1.5 times, achieving 80% odor removal within 10 minutes.

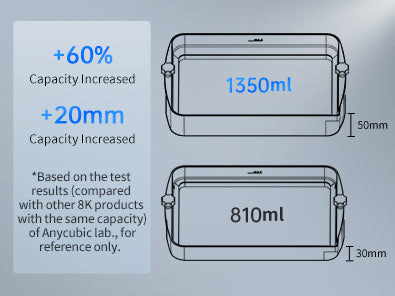

Larger Vat, Less Refill

A 60% larger resin tank eliminates the need to refill resin constantly when printing large 3D models. Compared to traditional FEP film, the application of NFEP film make it easier to detach the prints, increasing the printing success rate by 10%.

Key Specification

• Build volume: 219 x 123 x 250 mm
• Layer height: 5 microns
• XY resolution: 28.5 microns (7,680 x 4320 pixels)
• Z-axis positioning accuracy: 0.005 mm
• Printing speed: 95 mm/h
• Bed leveling: Manual
• Display: 4.3-inch touchscreen
• Third-party materials: Yes
• Materials: 405 nm UV resin
• Camera: No
• Frame dimensions: 330 x 335 x 630 mm
• Weight: 19 kg

Detailed Features and Specification

Package Includes

• 1 x Anycubic Photon M3 Premium

Shipping Info for Malaysia

🔥 In-stock KL (Sungai Besi)
🚀 Ship in 24hrs! Mon-Sat 10AM-6PM, Closed on Sunday.
🚚 Pick “Seller’s Fleet” at checkout for self-collect or same-day delivery services via Lalamove, Grab. Buyer covers fee. Set Smith3D Sungai Besi Office Lot as pickup point.
🛡️Carry-In warranty provided for manufacturing defects (1 year)

Warranty Note

▪ 1-year carry-in warranty for manufacturing defects.
▪ We will not make any warranties or accept any responsibility for any misuse by the user.
▪ For more details regarding provided warranty, visit our FAQ page.

Looking for More 3D Printing Options?

Discover our full range of Resin printers or check out Anycubic’s 3D printers and accessories at Smith3D Malaysia.
