ELEGOO Mars 5 Ultra

Key Features of ELEGOO Mars 5 Ultra

🔍 9K Resolution & COB Light Source

• 7-inch monochrome LCD display with stunning 9K resolution and 18 μm XY resolution for incredible detail and intricate textures.
• Scratch-resistant, tempered 9H glass screen protector to guard against resin leakage and damage.
• 25-LED COB light source emitting 405 nm UV light beam with 92% light uniformity for high-precision prints⚡ Lightning-Fast Curing Times:
• Cures a layer in just 1.5~3 seconds, ensuring rapid print speeds.🧩 Section-Based Exposure:
• Fine-tune exposure time for individual sections for greater control and improved printing results.

🔄 Tilt-Release Technology

• Innovative technology “tilts” the resin tank after each layer, allowing easy model release and speeds up to 150 mm/h.
• Switch between slow and fast printing modes.

🤖 Intelligent Functions

• Automatic levelling with one-click start: Level the build plate effortlessly every time.
• One-Click Self-Check: Quick self-test to ensure all printer components are functioning properly.

📸 AI Camera Intelligent Detection

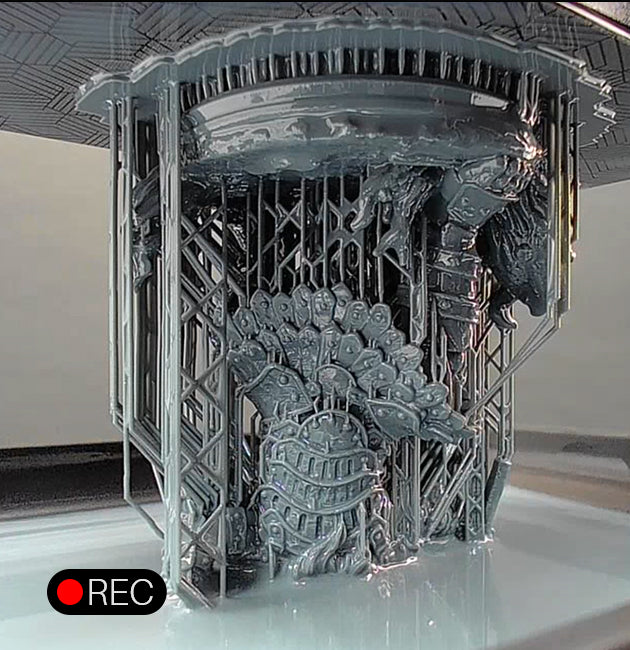

• Integrated AI camera detects common printing errors and monitors real-time printing status.
• Detects empty build plates, print model errors, and allows for time-lapse video creation.

🔧 Mechanical Sensor for Smart Printing

• Detects residue to prevent LCD screen damage.
• Alerts for resin shortage and levelling issues to avoid print errors and material waste.

🌟 User-Friendly Design

• Quick-release design for the build plate.
• Resin tank with dual outlet openings for easy resin pouring.
• Drip tray to prevent resin leakage.
• Replaceable locking screws on the resin container.

🛡️ Additional Features

• Durable metal frame.

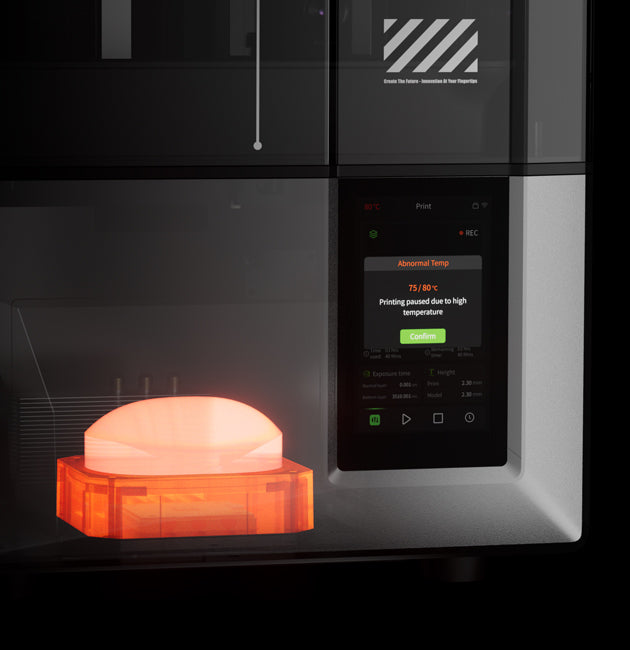

• Overheating protection: Automatically stops printing if temperature exceeds 80°C.
• Power-Loss Resume Printing Function.
• WiFi Cluster Printing.
• 5-inch capacitive touchscreen with an intuitive interface.
• Laser-engraved build plate for outstanding adhesion.
• Compatible with Elegoo Mars MATE air purifier.

Key Specification

Build Volume: 153.36 x 77.76 x 165 mm
Maximum Print Speed: 150 mm/h

Detailed Features and Specification
